Khadas Launches Mind Graphics External Graphics Dock

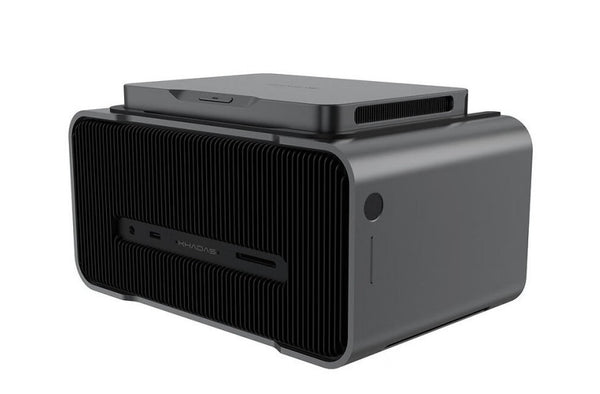

Khadas announced yesterday the launch of their new Mind Graphics external graphics dock in China. This cutting-edge device, featuring a built-in RTX 4060 Ti 8GB desktop graphics card, promises to elevate the gaming and computing experience with its versatile connectivity and robust performance.
![](https://cdn.shopifycdn.net/s/files/1/0550/0554/4682/files/Weixin_Screenshot_20240717174545_600x600.jpg?v=1721209595)
Dual Connection Methods: Thunderbolt 4 and Mind Link

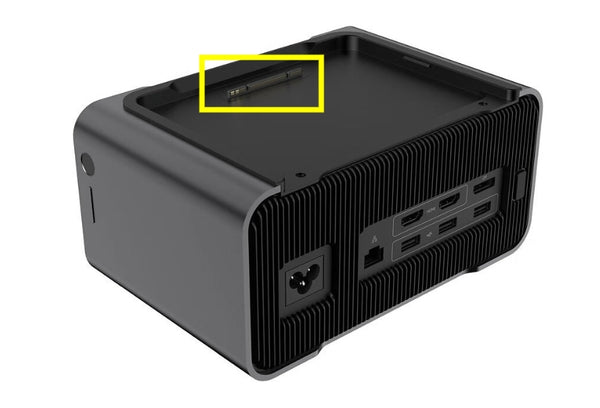

The Mind Graphics dock offers two primary connection methods to ensure compatibility and high-speed data transfer with a variety of devices. It comes equipped with a universal Thunderbolt 4 Type-C interface, facilitating seamless connections with laptops, desktops, and other compatible devices. Additionally, Khadas has integrated its proprietary Mind Link interface, specifically designed for connection with the Mind mini host.
![](https://cdn.shopifycdn.net/s/files/1/0550/0554/4682/files/Weixin_Screenshot_20240717174553_600x600.jpg?v=1721209617)
The Mind Link interface stands out with its impressive data transfer capabilities. While it can theoretically support PCIe 5.0×8 specifications, offering up to 256GT/s, the version incorporated in Mind Graphics operates at PCIe 4.0×8, delivering a transfer rate of 128GT/s. When paired with the current generation of the Mind mini host, the connection bandwidth reaches 64GT/s, significantly surpassing the speed of Thunderbolt 4 and ensuring minimal to no performance loss during intensive tasks.
![](https://cdn.shopifycdn.net/s/files/1/0550/0554/4682/files/Weixin_Screenshot_20240717174606_600x600.jpg?v=1721209637)
Enhanced Stability with Mind Lock Mechanism
To complement its high-speed connectivity, the Mind Graphics dock features the Mind Lock locking mechanism. This innovation enhances the physical stability of the Mind Link connection, ensuring a secure and reliable link between the dock and the host device, even during high-performance operations.
Premium Build and Design
Constructed with Al-Si-Cu die-cast aluminum alloy, the Mind Graphics dock exudes durability and sophistication. The manufacturing process includes CNC machining and anodizing, resulting in a sleek and sturdy device. Measuring 199×133×100 mm and weighing 2.7kg, the dock has a compact volume of approximately 2.5 liters, making it a portable yet powerful addition to any setup. It also houses a 300W gallium nitride power supply, ensuring efficient power delivery to the integrated graphics card.
![](https://cdn.shopifycdn.net/s/files/1/0550/0554/4682/files/Weixin_Screenshot_20240717174615_600x600.jpg?v=1721209658)
Extensive I/O Expansion and Additional Features

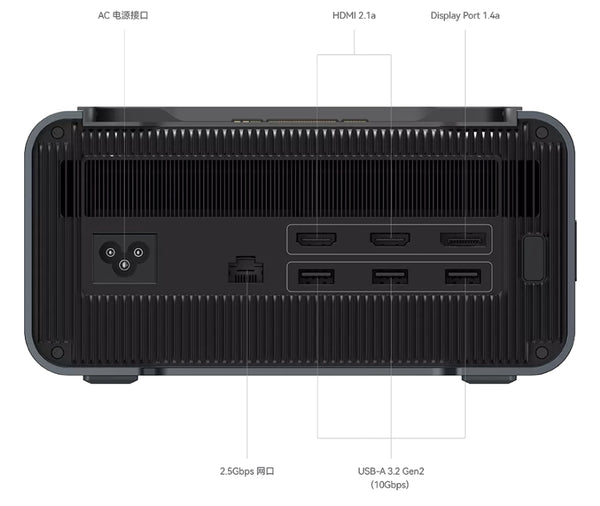

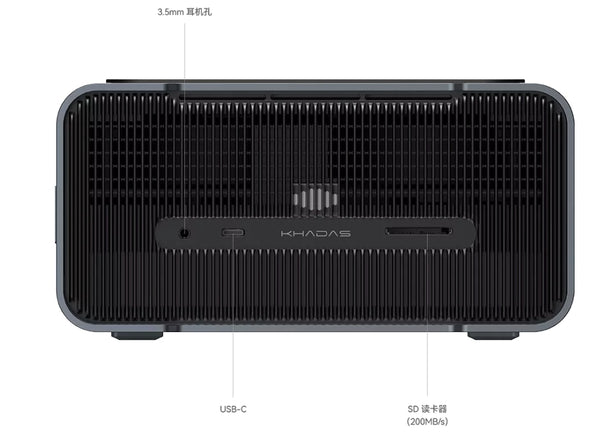

Mind Graphics is not just an external graphics dock; it serves as a comprehensive I/O expansion hub. The front panel includes a 3.5mm headphone jack, a Thunderbolt 4 Type-C port, an SD card reader, and a central RGB indicator light. The back panel is equally impressive, offering a 2.5Gbps wired network port, two HDMI 2.1a interfaces, one DP 1.4a interface, and three USB 3.2 Gen2 10Gbps Type-A ports.
For enhanced user experience, the dock also incorporates a built-in far-field microphone array and a dual speaker system. A physical mute button with an integrated fingerprint reader is located on the side, providing both privacy and security with a single touch.
Conclusion
With the introduction of Mind Graphics, Khadas has set a new benchmark in the realm of external graphics solutions. The combination of advanced connectivity options, premium build quality, extensive I/O expansion, and additional user-centric features positions Mind Graphics as a must-have for gamers, content creators, and professionals seeking top-tier performance and versatility. As it hits the market in China, anticipation is high for its global release, promising to revolutionize the external graphics dock landscape.
