Minisforum Neptune NAD9 MiniPC Launched with Intel Core i9-12900H Processor and Iris Xe Graphics

0 comments

The Minisforum company has already presented several interesting, miniature computers last year. They mainly used AMD Ryzen 4000 and 5000 series processors - among the units used were both mobile APUs Renoir and Cezanne as well as their desktop counterparts. The company later even presented a computer based on a notebook case. This time it's time for a more classic MiniPC case, but based on a more powerful Intel Alder Lake-H processor.

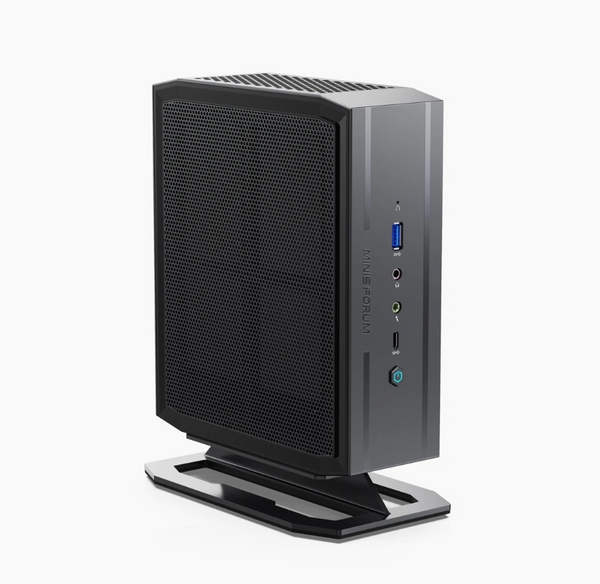

The Minisforum company introduces to its offer a small computer set Neptune NAD9 MiniPC, based on the 14-core Intel Core i9-12900H processor and the Intel Iris Xe Graphics graphics system. Minisforum Neptune NAD9 MiniPC is a small computer set, equipped with a 14-core and 20-thread Intel Core i9-12900H processor with integrated graphics Intel Iris Xe Graphics (96 EU). There are also two SO-DIMM slots for DDR4 3200 MHz RAM (up to 64 GB) and up to three slots for data storage: one M.2 for SSD PCIe 4.0 x4 NVMe and two 2.5" for additional HDD/SSD in The computer has a fairly extensive range of ports, although the absence of Thunderbolt 4 is surprising.

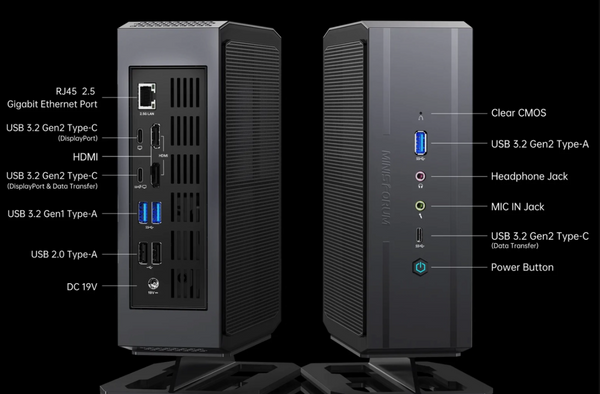

The connectors include three USB 3.2 type C Gen.2 ports (two of which are compatible with the DisplayPort 1.4 protocol), five USB type A ports, two full HDMI 2.0 ports, RJ-45 2.5 Gbit Ethernet network, two 3.5 mm audio-jack sockets and a button for CMOS battery reset. The computer in the set has a special stand that allows you to place the equipment also vertically. A single fan, connected to a heat sink and three heat pipes, is responsible for cooling.

There is also no shortage of support for the latest system in the form of Windows 11 (Home and Pro). Orders can now be placed directly on the Minisforum website, with availability scheduled for the second half of January 2023. You can also get a discount during the pre-order period, bringing the base version of the Neptune NAD9 (without RAM and disk) for $569.

Specification

Processor

Intel Core i9-12900H (14C/20T)
6x P-Core: 2500-5000 MHz
8x E-Core: 1800-3800 MHz

Integrated layout

Intel Iris Xe Graphics, 96 EU, 1450 MHz

Dedicated layout

-

RAM

Do 64 GB RAM DDR4 3200 MHz (2x SO-DIMM)

Data warehouse

1x M.2 SSD PCIe 4.0 x4 NVMe (up to 2TB)
Optional: 2x 2.5" SATA III HDD/SSD

Connectors

1x USB 3.2 typu C Gen.2 (DP 1.4, Data Transfer)
1x USB 3.2 typu C Gen.2 (DP 1.4)
1x USB 3.2 typu C Gen.2 (Data Transfer)
1x USB 3.2 typu A Gen.2
2x USB 3.2 typu A Gen.1
2x USB 2.0 typu A
2x HDMI 2.0
1x Ethernet RJ-45 2.5 Gbit
2x Audio-jack 3.5 mm
1x CMOS (wtyczka do resetu baterii CMOS)

Communication

Wired (Ethernet RJ-45 2.5 Gbit) + Wireless WiFi 6E + Bluetooth 5.X

Libra

?

Dimensions

160 x 67 x 208 mm

System

Support for Windows 11 Home / Pro
